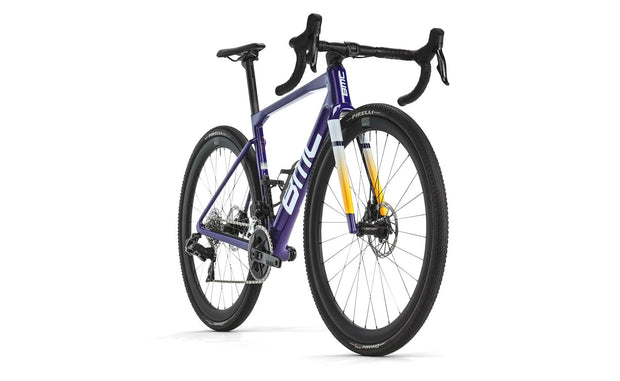

BMC Kaius 01 THREE SRAM Rival
Kaius is a premium carbon gravel bike built to be your elite race companion for all terrains. The unprecedented carbon layup and gravel-specific geometry ensure the perfect balance of stiffness, lightweight, and compliance for optimal traction on loose surfaces, front-end stability, and unmatched climbing prowess. Harnessing the precision and performance of our renowned leading road technologies, Kaius is a race machine tuned to the gravel wavelength with the engineered Kaius fork, our signature ICS2 stem and conventional bar, TCC Race compliance, compatibility with 1x and 2x drivetrains and up to 44 mm of tire clearance.
Frameset
Frame:
Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
BMC RAB 03 | Ergo Top Shape | Compact Bend
Seat
Seatpost:
Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle:
Fizik Vento Argo R5 | 140mm
Drivetrain
Crankset:
SRAM Rival DUB WIDE
Chainrings:
43-30T
Cassette:
SRAM Rival AXS (XG-1250)
Cassette Size:
10-36T
Chain:
SRAM Rival
Front Derailleur:
SRAM Rival eTap AXS WIDE
Rear Derailleur:
SRAM Rival eTap AXS WIDE
Shifters:
SRAM Rival eTap AXS HRD
Gears:
2 x 12
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM Rival eTap AXS HRD
Rotors:
SRAM Paceline | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CRD-400 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
CRD-400
Tires:
Pirelli Cinturato Gravel H | 40mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
In the Box:
Aerocore Bottle Cages
Additional Information
Tire Clearance:
44mm
Weight without Pedals:
8.9 Kg
ASTM Classification:
Level 2
System Weight Limit:
120kg
